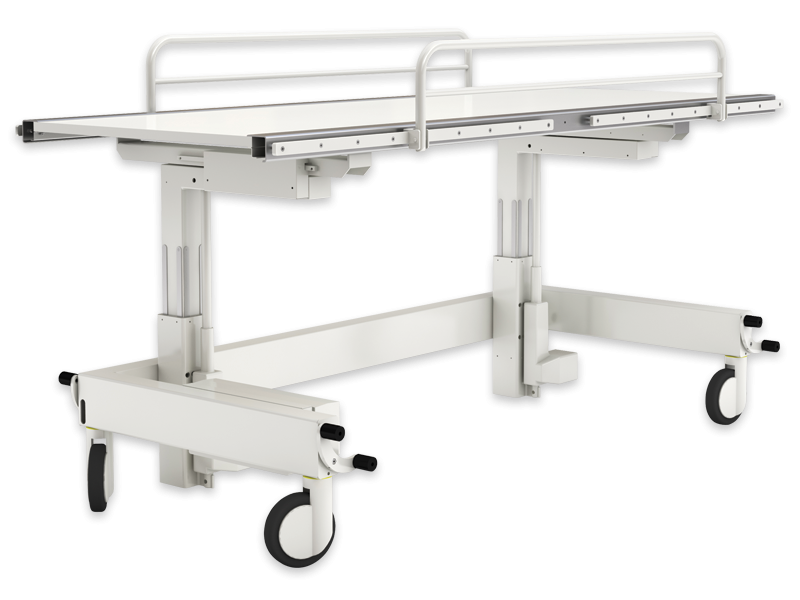

Multi-Purpose Examination Table
Ideal for use in endoscopy, colonoscopy, radiology and pain clinics, the Multi-Purpose Examination Table is fully portable and has a no trip risk. The examination table features a floating X-ray transparent tabletop with electromagnetic locks and motorised height adjustment from 60 cm to 85 cm.
Features
- Battery-powered.
- Motorised ± 10° Trendelenburg.
- Flexible control panel on side rail.
- Additional back-up battery with a wall charger.
- Weight capacity of up to 250 kg.
Available with a number of optional fittings
- Carbon fibre tabletop.
- Side rails.
- Drip stand.
- Mattress.
- Positioning handles
Multi-Purpose Examination Table Specifications
| Description | Dimensions |
|---|---|
| Tabletop | 200 cm long x 80 cm wide |
| Tabletop longitudinal movement | ± 37 cm with magnet brake |
| Tabletop transversal movement | ± 15 cm with magnet brake |
| X-ray transparent tabletop area | 197 cm x 64 cm |
| Distance between columns | 118 cm |
| Weight of table | 135 kg |
| Weight capacity | 250 kg |
